HIGH SPEED MULTIPLE STRAW PACKING MACHINE
INTRODUCTION TO MULTIPLE STRAW PACKING MACHINE
Mesin ini direka khas untuk pelbagai jerami, pembungkusan automatik sepenuhnya. Ia boleh digunakan untuk mengemas jerami diameter/panjang/kuantiti yang berbeza ke dalam beg yang dihasilkan auto.
Mesin ini terdiri daripada corong, peranti pemakanan jerami, sistem penghantaran, kaunter, peranti berehat filem, peranti membuat beg, peranti menarik pusat, peranti pemotongan silang, penghantar pelepasan, dan lain-lain. Ia mudah untuk operasi. Boleh dipercayai & Kecekapan yang tinggi, bentuk bantal sangat cantik.
Ciri -ciri mesin
1. automatically tracking the logo cursor on the packaging film, one bag, one logo corresponds to the package;
2. Counting, film feeding, packaging and bag making are completed in one time.
3. adjustable bag length
4. after sealing, automatically cut off and separate, Sawtooth fracture
5. adjustable cutting speed of cross-seal
6. automatic longitudinal sealing, chevron pattern
7. when packing multipronged tube (oral liquid straw). It can realize two forms of pillow package and three-side sealing. That is, the rear knife shaft group can realize 90 degrees rotary adjustment.
8. full servo drive; bag length, rear knife speed, cutter position can be set in the touch screen.

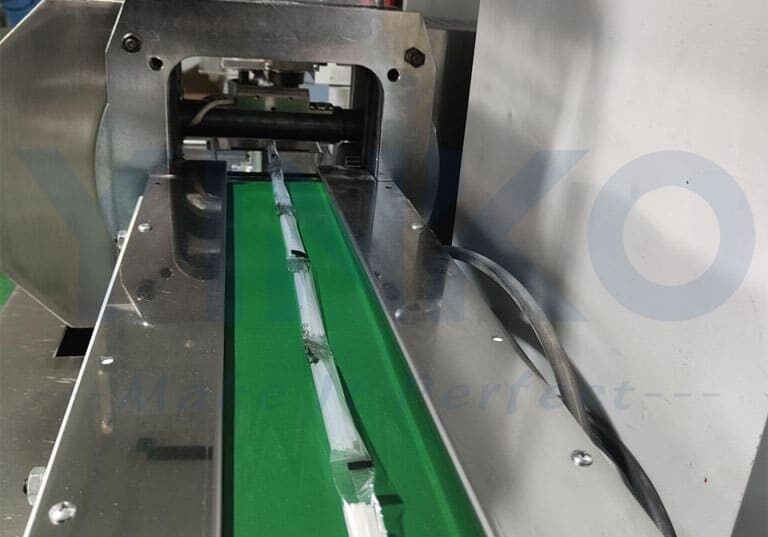

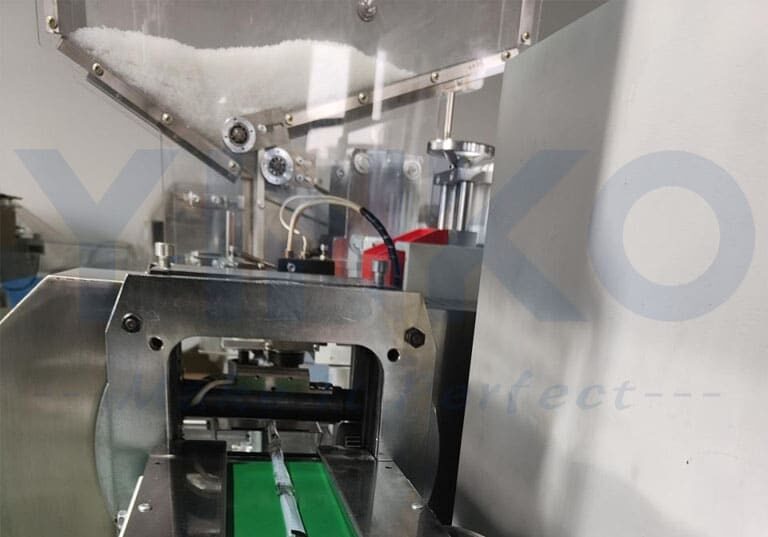

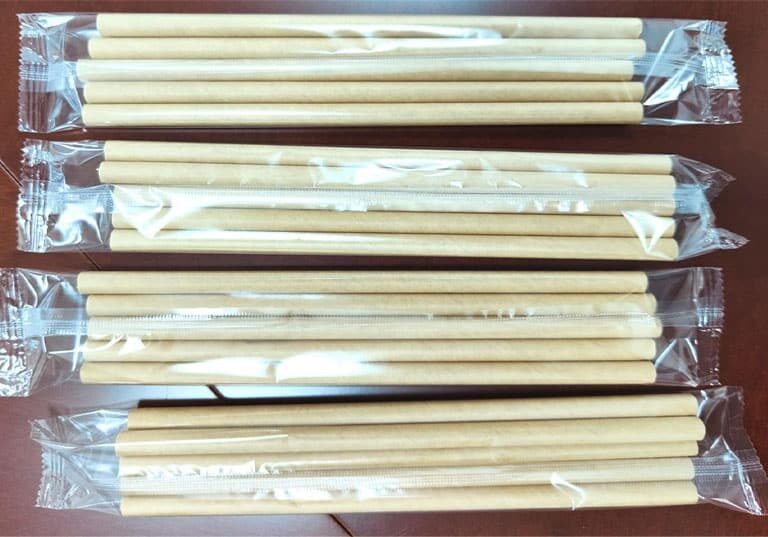

Pembungkusan jerami berganda
This machine is best for the small diameter straw packing with quantity less than 50pcs/bag
Periksa bagaimana mesin berfungsi
Mesin pembungkusan jerami berganda ini akan meningkatkan kecekapan pembungkusan, dan memberi pelanggan lebih banyak pilihan dalam pembungkusan kuantiti yang berbeza.
Spesifikasi teknikal
| Model | 042 Multiple straw packing machine | |
| Power | Single Phase 220Vac 1.85Kw | |
| Drive type | Motor servo | |
| Control type | PLC control | |
| Specification of the straw | Panjang | 120mm～200mm/ 160mm～240mm |
| Diameter | 3mm~12mm ( customized) | |
| Spec.of the product | Outer shape | Pillow shape |
| number | 3～50 pcs/bag( customized) | |
| Packing speed | 20-70bags/min ( customized) | |
| Packing film | Thermal sealing film BOPP、 PE、OPP、etc | |
| Saiz mesin | 1850mm×900mm×1650mm | |
| Berat mesin | 550KG | |

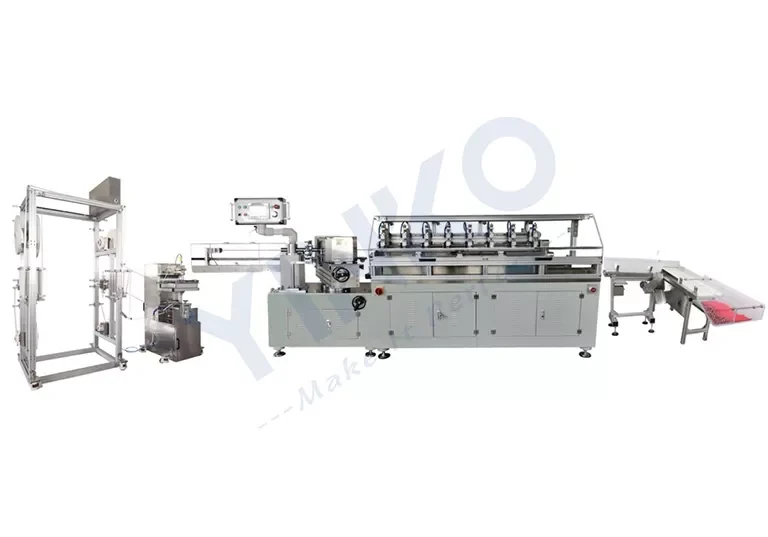

CHECK PAPER STRAW MACHINE HERE
