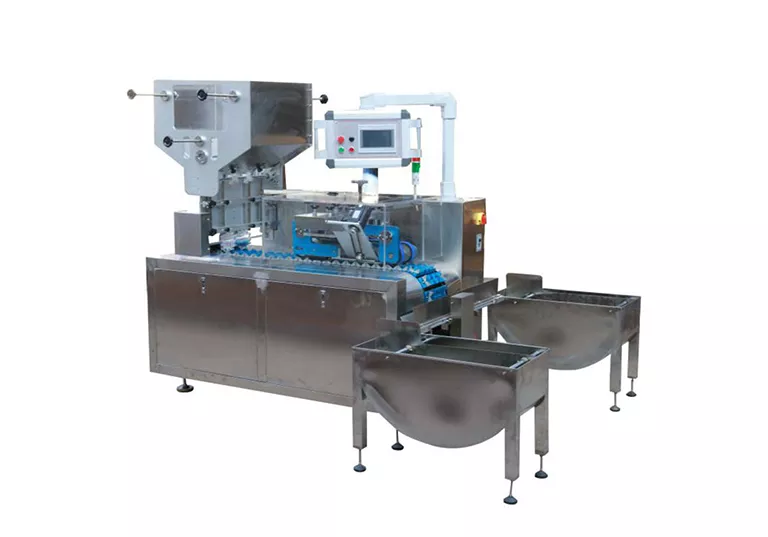

HIGH SPEED PAPER STRAW BEVEL CUTTING MACHINE
INTRODUCTION TO STRAW BEVEL CUTTING MACHINE
This high speed paper straw bevel cutting machine is designed to cut straight paper straw into bevel incision,widely used in bubble tea straws production.
Best bevel angle is 45 degree, but also could adjust to other angles.
1. The device combines automatic dropping of the suction pipe and automatic oblique cutting to achieve automatic oblique cutting of a single double (or single) length suction pipe into two (or one) suction pipes.

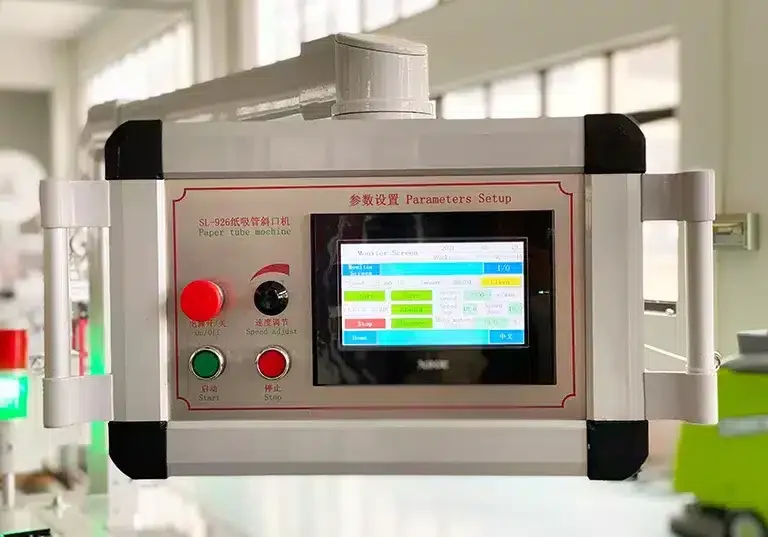

2. A PLC controls this machine. Speed regulation and frequency conversion are available on the host machine. The touchscreen is used as the user interface. It is simple to operate and set up.

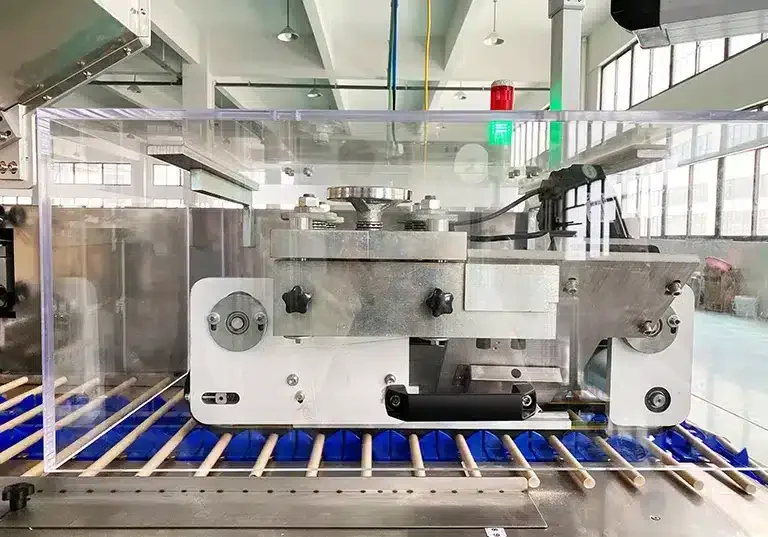

3. The cutting section uses a multi-knife cutting technology, which produces no waste and has excellent levels of precision, efficiency, and speed.
4.The primary accessories are constructed of stainless steel to guarantee the products' cleanliness and environmental protection.

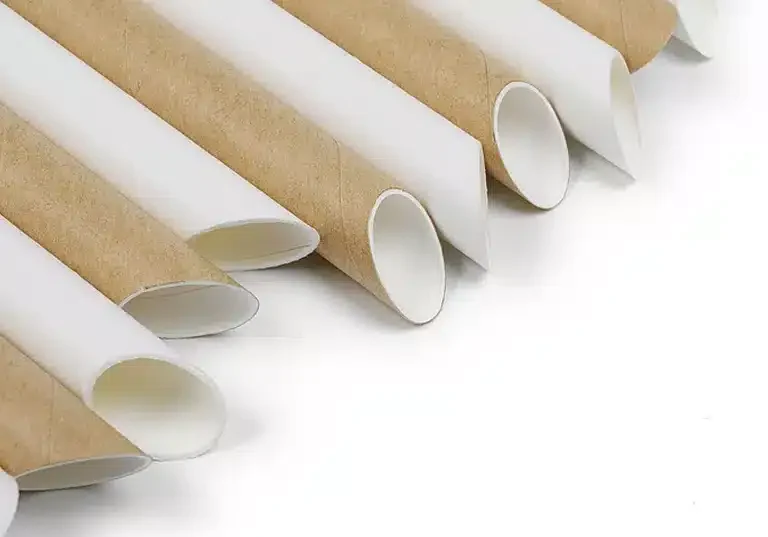

Straw After Cutting
Put a long paper straw inside the hopper, after cutting, get two pcs 45-degree inclined paper straw

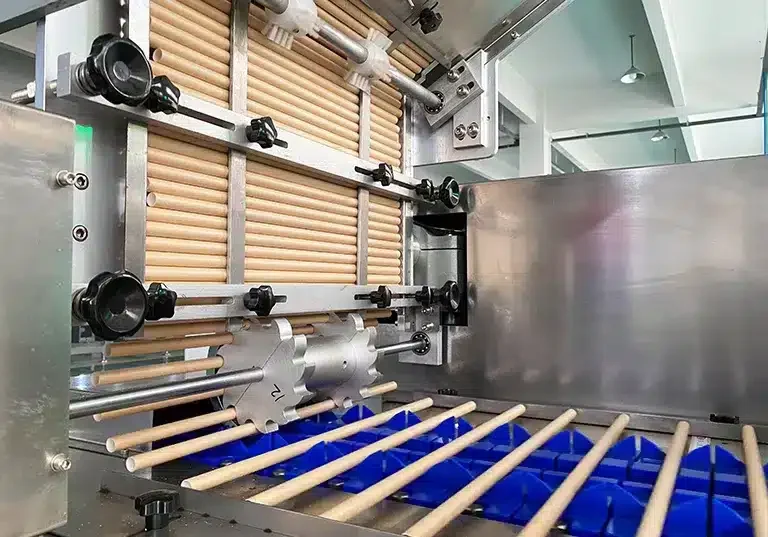

Check How The Bevel Cutting Machine Works
With this high speed paper straw bevel cutting machine, your production capacity will be greatly improved.
Spesifikasi Teknis
| Technical Parameter | |
| Paper Straw OD | 4-14mm |
| Cutting Speed | 600-1000 pcs/min. |
| Cutting Way | 1 cut to 2pcs |
| Finished Straw Length | 90-260mm |
| Motor | Shanghai Hengtong |
| Touch Screen | MCGS |
| Motor Servo | Xinjie |
| Kekuatan | 0.75kw |
| Sumber Daya listrik | 220V 50Hz |
| Measurement | 2.5m*1.9m*1.8m |
| Berat | 1500kgs |
| Blade | 2 Pieces |
| Mould | 4 Sets |
| Kotak alat | 1 Set |

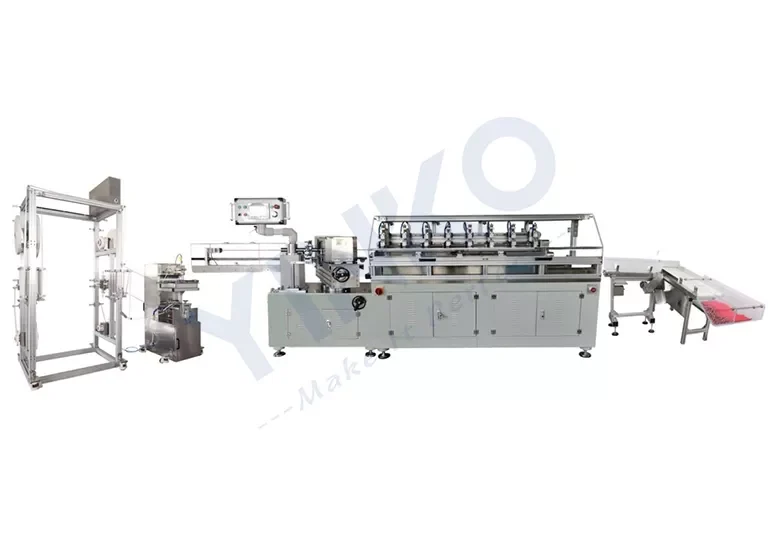

Mesin pembuat sedotan kertas
